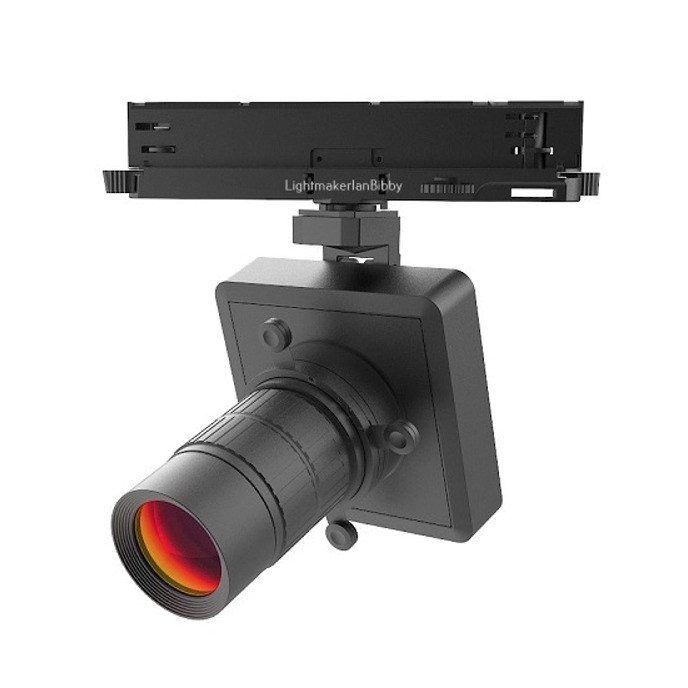

GONIA Framing Spot

GONIA is a specialist framing spot designed to project light and illuminate pictures precisely by correcting parallax.

GONIA’s head can be adjusted precisely 360°+ Horizontal and 90° vertically and in addition to adjustment provided by manipulation of shutters  to create the shape of light required.

Specification

Power 15 watt

Voltage 220V- 240V

Power Factor >0.90

Beam Angle Prior Framing 45 Degrees

Dimming 0-10V on board. Triac Dimmable available to order.

Lumen Output 500lm

CRI 95

Light Colour Temp 3000K (other CT’s available to order)

Body Colours Black or White Including track adaptor or base plate

Installation Method 3 Circuit Track.

Dimensions
Height Exc Track Adapter 95mm
Width 95mm
Depth 94mm
